1000ml Bottle filling line
It is suitable for the line of regular bottles less than 1000ml. Bottles are loaded manually, filling and capping is completed by these two combined machines, then to wet-glue or self-adhesive phase, products are put in cartons manually.
● It only requires 3 people (one operator, two assistants) to run this line.

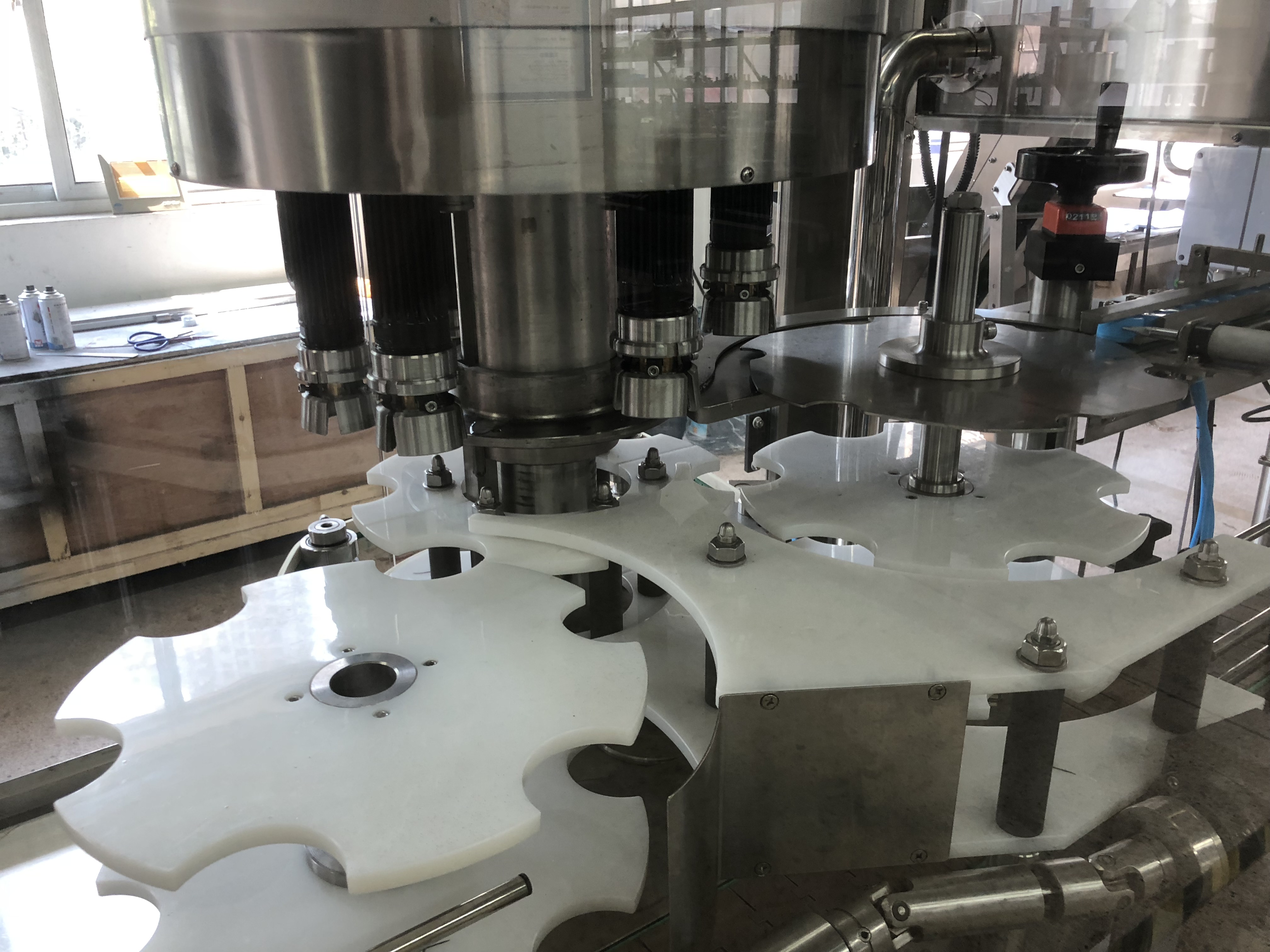

● Filling and capping combined machine has good coordination. Servo volumetric filling to ensure high precision; the design with no material tank is more convenient for cleaning and spec change. Linear capping, it is adjustable.
● Wet-glue or self-adhesive are for customers option.
Drip free nozzles with filling range of 250ml to 5000ml/5Ltrs. to 20 Ltrs. with drip tray for accidental drip.
Non contact electronic sensor to ensure "no bottle no fill" system.
Available from 4 head to 16 head.
Mitsubishi make PLC system with 7" Touch screen and VFD control for conveyor speed control.
German flow meter for better repeatability of 0.05%. Having in built non liquid contact sensor for measuring rotation of chamber. All contact parts in Mild steel / Stainless steel plating.
Body frame made up of M.S. with Powder coating or Stainless steel. All contact parts stainless steel.
Capable of automatic intake of empty bottles / container on to the filling station and discharge after filling bottles with the help of stop and release lever pneumatically operated.
Fast flow and fine flow system for better accuracy, Interval can be set form PLC, Volume would be set individually for each nozzle with increment of 1ml.
Neck entry system so that the nozzle enter inside the container before filling to avoid spillage.
Conveyor with stainless steel slats and suitable for filling 250ml to 5 Ltrs./5Ltrs. to 20 Ltrs. container along with electric motor for main drive and conveyor reduction gear box with variable frequency drive.
Enclosed body with transparent Acrylic doors front and back.
Pneumatically operated Nozzle Up-Down movement & stopper Gates for bottle entry and exit.
Adjustment can be made without interrupting filling sequence.
Manual valve on bypass line of pump.
Pump of 200 Lpm.
In built memory to store 25 Recipes.
Filling accuracy of +/- 0.25% till 5 Ltrs. & 0.1% till 15 Ltrs.
As flushing system is given the product change over time is 15 to 20 minutes.
As setting of the volume is through PLC product change time is 15 to 20 minutes. To make it more fast we have provided with in built memory which can store and recall whenever required.
